• 17" x 7.5" styled steel wheels
• LT265/70R17E all-season BSW tires
• Single rear wheels
• Center wheel hubs
• 17" steel spare wheel
• Full-size spare tire
• Winch-type spare tire carrier
• Gray front bumper

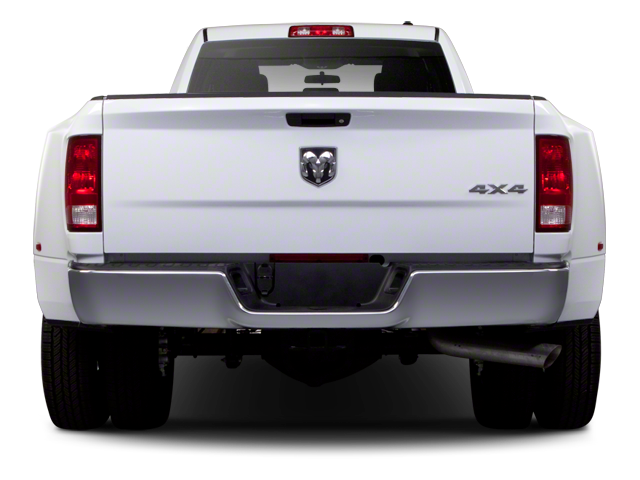

• Dark gray rear bumper w/step pads
• Front air dam

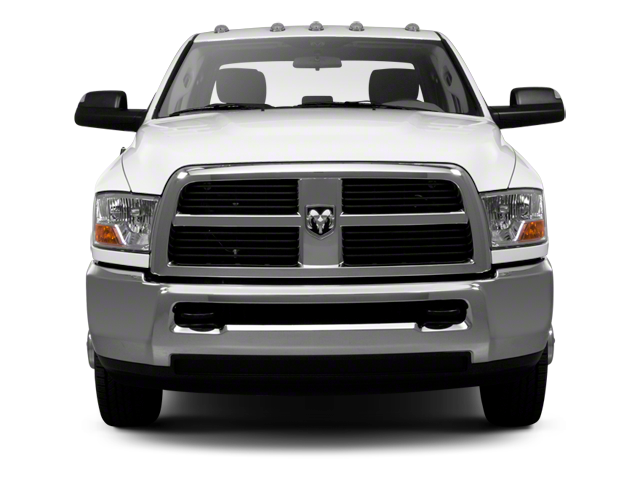

• Bright grille
• Black headlamp filler panel
• Auto headlamps
• Cargo lamp
• Black pwr trailer tow mirrors -inc: supplemental signals, courtesy lamps, heated glass
• Tinted glass windows
• Variable-speed intermittent windshield wipers
• Front license plate bracket

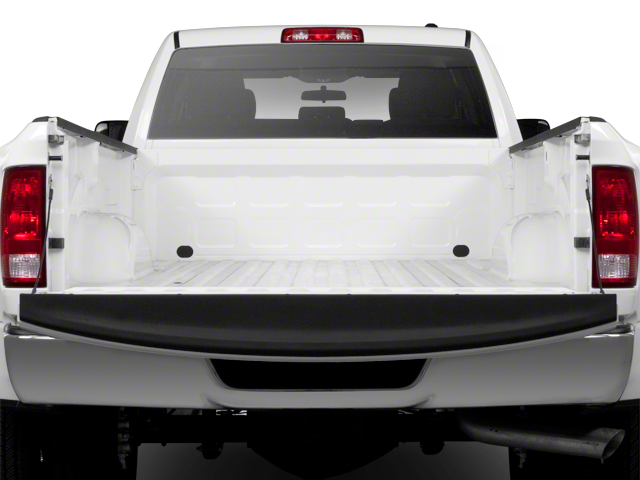

• Locking tailgate
• Black door handles

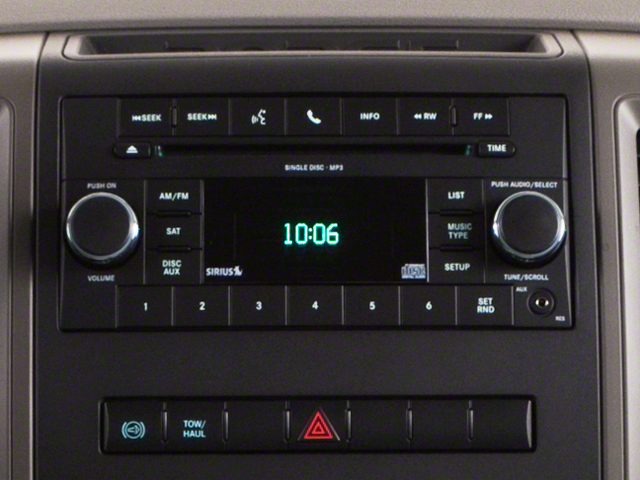

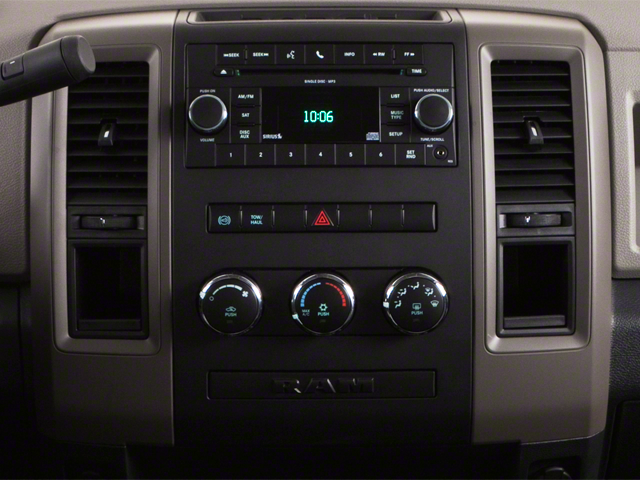

• Media Center 130 -inc: AM/FM stereo w/CD/MP3 player
• Audio input jack
• (6) speakers
• Fixed long mast antenna

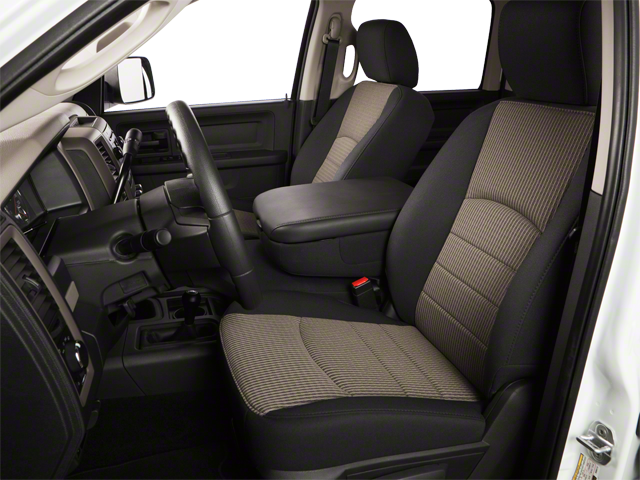

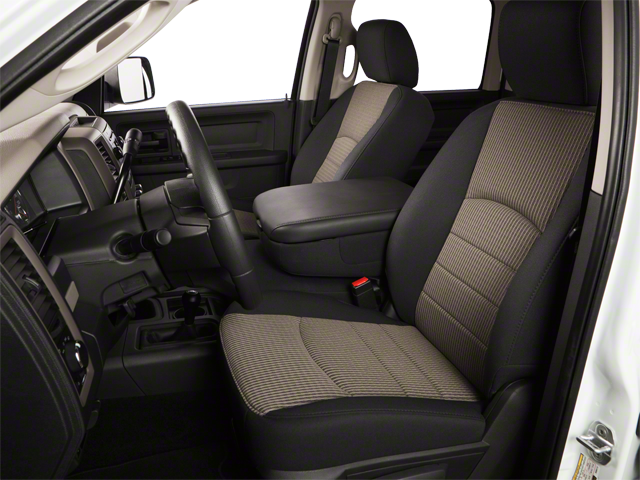

• HD vinyl 40/20/40 split-bench seat

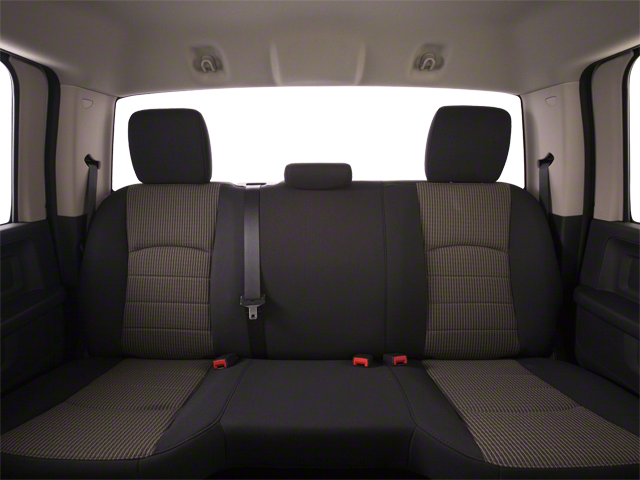

• Rear folding bench seat
• Black vinyl floor covering
• Mini floor console
• Tilt steering column
• Sentry Key theft-deterrent system

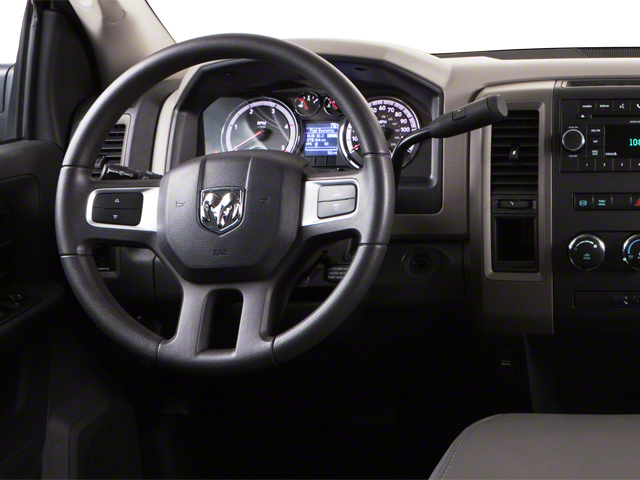

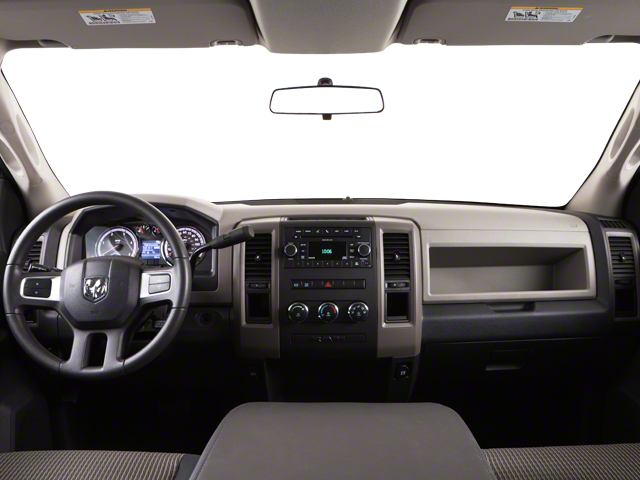

• Instrument cluster w/display screen
• Vehicle info center
• 120-MPH primary speedometer

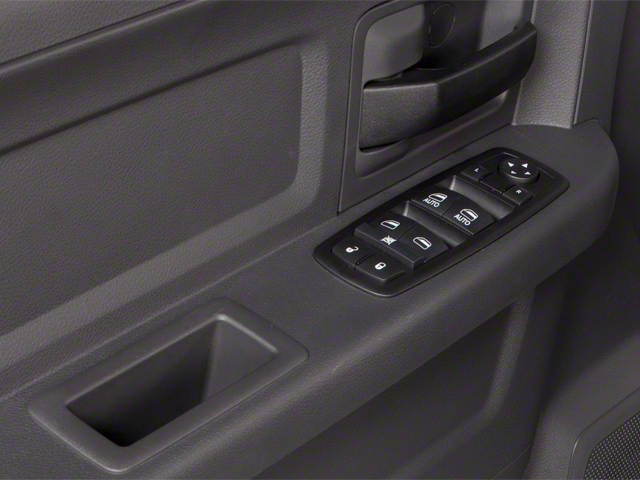

• Pwr windows w/front one-touch up/down
• Pwr accessory delay
• Pwr locks
• Speed control
• Air conditioning
• 12V auxiliary pwr outlet
• Driver/passenger assist handles
• Rear dome lamp

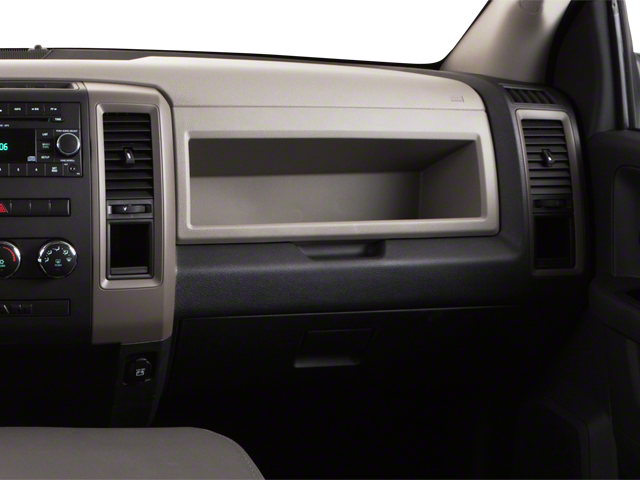

• Black instrument panel bezel
• Rear underseat compartment storage
• 2nd row in-floor storage bins

• Advanced multistage front airbags
• Supplemental front side airbags
• Front/rear side curtain airbags
• Front height-adjustable shoulder belts
• Dual-note horn

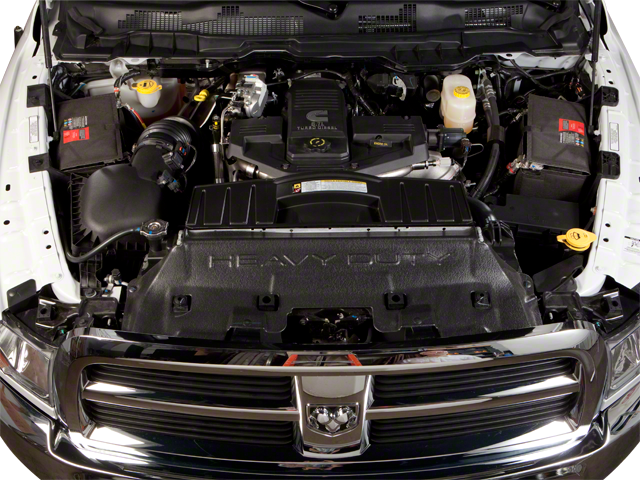

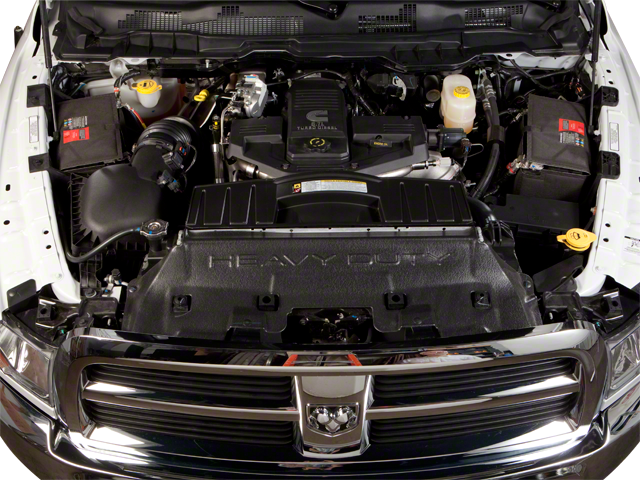

6.7L I6 CUMMINS TURBO-DIESEL ENGINE

• (STD)

• Quick Order Package 2FA ST
• 3.73 Rear Axle Ratio
• 17" x 8" Chrome Clad Steel Wheels
• 17" x 7.5" Styled Steel Wheels
• Cloth 40/20/40 Bench Seat
• HD Vinyl 40/20/40 Split Bench Seat
• Clearance Lamps
• Engine Block Heater
• Radio: Media Center 130 CD/MP3
• ST Popular Equipment Group
• Protection Group
• Trailer Brake Control
• Transfer Case Skid Plate Shield
• Carpet Floor Covering
• Front & Rear Floor Mats
• BlueTEC® Diesel System
• 40/20/40 Split Bench Seat
• Rear Folding Seat
• Mini Floor Console
• Hood Insulation
• Premium Body Insulation
• BlueTEC® Diesel Badge
• Diesel Exhaust Brake
• Electronically Controlled Throttle
• Current Generation Engine Controller
• SIRIUS Satellite Radio
• Center Hub
• Tow Hooks
• 4-Wheel Disc Brakes
• Front beverage holders
• Variably intermittent wipers
• Turn signal indicator mirrors
• Tilt steering wheel
• Speed control
• Rear step bumper
• Rear seat center armrest
• Power windows
• Power steering
• Power door mirrors
• Passenger door bin
• Overhead airbag
• Occupant sensing airbag
• Heated door mirrors
• Fully automatic headlights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• CD player
• ABS brakes
• Voltmeter
• Tachometer
• Air Conditioning
• 6 Speakers
• AM/FM radio
• Front Center Armrest

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Maximum Alternator Capacity (amps): 160
• Maximum Alternator Watts: 2240
• Cooling System
• Total Cooling System Capacity (qts): 29.5
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5500
• Gross Axle Wt Rating - Rear (lbs): 6500
• Curb Weight - Front (lbs): 4300
• Curb Weight - Rear (lbs): 2751
• Gross Vehicle Weight Rating Cap (lbs): 10100
• Gross Combined Wt Rating (lbs): 19000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 11800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1770
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): - TBD -
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): - TBD -
• Suspension
• Suspension Type - Front: Live axle
• Suspension Type - Rear: Live axle
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Hypoid
• Axle Type - Rear: Full-floating
• Axle Capacity - Front (lbs): 5500
• Axle Capacity - Rear (lbs): 6010
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.2 x 1.53
• Rear Brake Rotor Diam x Thickness (in): 14.1 x 1.34
• Tires
• Front Tire Order Code: TT3
• Rear Tire Order Code: TT3
• Spare Tire Order Code: TBB
• Front Tire Size: LT265/70R17E
• Rear Tire Size: LT265/70R17E
• Spare Tire Size: LT265/70R17E
• Front Tire Capacity (lbs): 3195
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): 3195
• Revolutions/Mile @ 45 mph - Front: 684
• Revolutions/Mile @ 45 mph - Rear: 684
• Revolutions/Mile @ 45 mph - Spare: 657
• Wheels
• Front Wheel Size (in): 17 x 7.5
• Rear Wheel Size (in): 17 x 7.5
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Recirculating Ball
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: Inboard Frame Rails
• Exterior Dimensions
• Wheelbase (in): 149.0
• Length, Overall w/o rear bumper (in): 237.4
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 78.4
• Overhang, Front (in): 39.9
• Overhang, Rear w/o bumper (in): 48.7
• Front Bumper to Back of Cab (in): 152.0
• Cab to Axle (in): 36.7
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 36.9
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.1
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 76.0
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 51.1
• Cargo Box (Area) Height (in): - TBD -
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): - TBD -
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.0
• Front Leg Room (in): - TBD -
• Front Shoulder Room (in): - TBD -
• Front Hip Room (in): - TBD -
• Second Head Room (in): 39.9
• Second Leg Room (in): - TBD -
• Second Shoulder Room (in): - TBD -
• Second Hip Room (in): - TBD -
• Summary

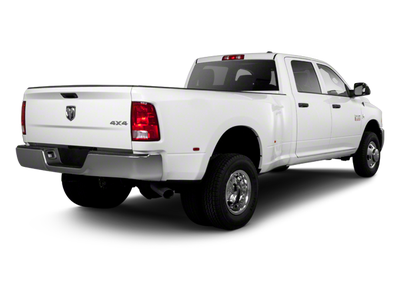

• Vehicle Name: Dodge Ram 3500
• Body Style: Crew Cab 6'4" Box
• Body Code: 149" WB
